Product code: AIR480X272S43_I
4.3" resistive touch AirHMI TFT display, 480 × 272 resolution, Industry package. Drag-and-drop interface design in Visual Screen Creator, TTL (UART) and optional RS485 (Modbus) communication.

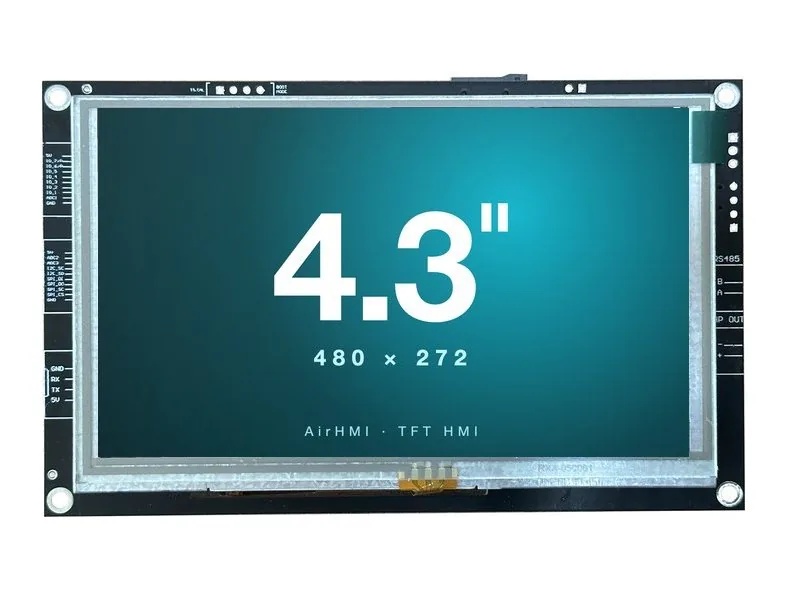

AirHMI 4.3" Resistive Industry has a 4.3-inch TFT display with 480 × 272 resolution. The 4.3-inch display suits compact devices, narrow panel doors and small control units. Thanks to its pressure-sensitive resistive touch surface, it can also be operated with gloves or a stylus.
In addition to the Advanced features, the Industry package offers 3 ADC, 2× 5V outputs, I2C, SPI and video/audio playback. It can be networked with the Ethernet Board and is the most comprehensive AirHMI package.
The interface is designed by drag and drop in the Visual Screen Creator editor using ready-made objects such as buttons, gauges, charts and lists, and extended with C-based code where needed.

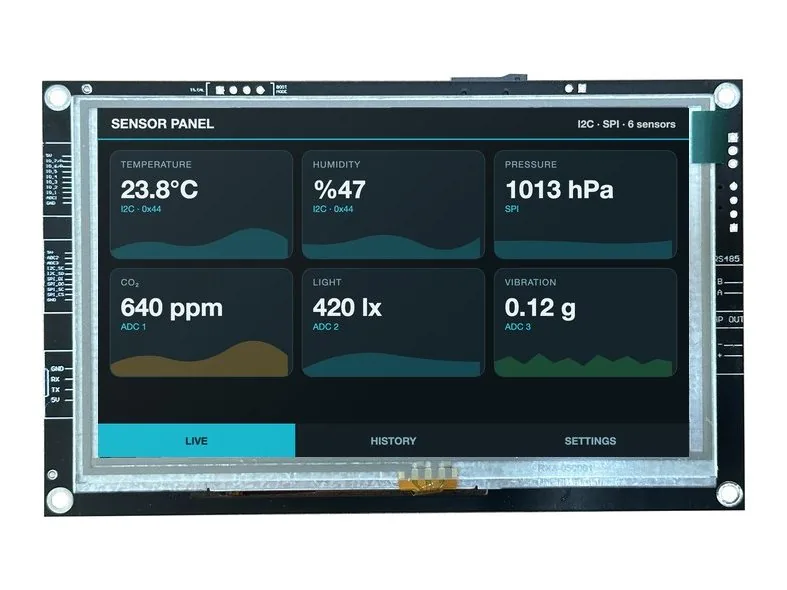

The screen shown in the images is a sample showroom promotional video playback interface; the interface is designed entirely for your project.
AirHMI products are manufactured in Türkiye and come with a 2-year warranty. You can compare other sizes and options on the series page.
Easy interface creation with the Visual Screen Creator editor and a C-based programming language

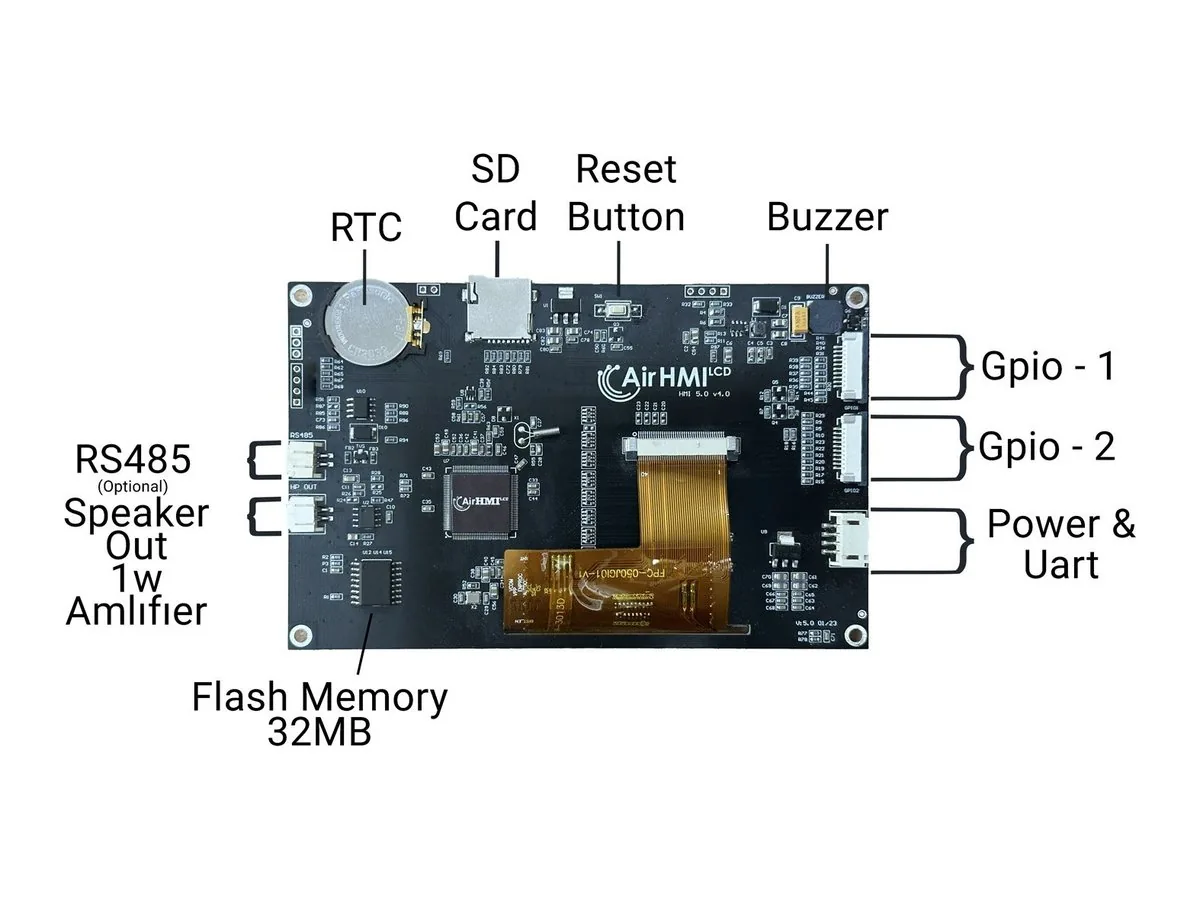

5× GPIO, 2× PWM or GPIO, 3× ADC and 2× 5V outputs
I2C and SPI interfaces; network connection with the Ethernet Board
Play video and audio files in your interface
Buzzer for touch feedback and alerts; real-time clock support
AirHMI displays are manufactured in Türkiye and come with a 2-year warranty
Let's define the right configuration for your project together with our engineering team.
